D/480JCT2T1EW Specifics :

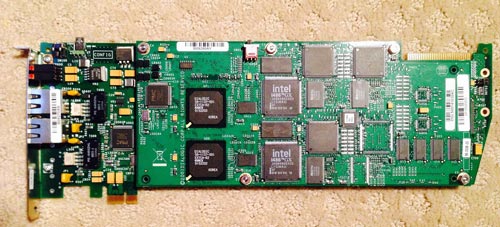

• The D/480JCT2T1EW card is Dialogic's) most popular PCI Express dual span T1 telephony card. The card being offered is the PCI Express model (PCIe). The card is a server pull and has been green lighted and and run through Dialogic UDD and passes all tests. The card is offered with a full 1 year warranty..

• Model - D/480JCT2T1EW

• Card warranted for 90 days

• Latest Intel Drivers available upon request - SR 6.0

• Email us with questions at: sales@tti.net or call us at: 510-339-8275

Features and Benefits

• PCI Expresscompliant - Universal Bus Interface, Complies with PCISIG* Bus Specification, 3V, 5 V signaling environment
• Onboard T-1 interface
• One T-1 ISDN PRI trunk
• Two Intel486 GX processors @ 32.768 MHz, 0 wait state
• Three Motorola* DSP56303 @ 100 MHz, each with 256 K word private, 2 wait state SRAM
• 32- to 16-bit conversion in target mode
• Easy integration with Microsoft* Windows
• Shared memory is page mapped in/out dynamically as needed.
• Telephony Bus - H.100-style 68-pin fine pitch card edge connector

Dialogic® DualSpan-D/480JCT-2T1EW boards provide two spans of digital network interfaces in a H.100-compliant universal PCI form factor. The boards contain rich media features such as voice processing, speech recogition software, fax, tone signaling, global tone detection, global tone generation, and call progress analysis, making them ideal for service providers and large enterprises.
